Pneumatic Controller functions

• Range: 0-80psi
• Release pressure function included (switching to
negative pressure with vacuum pump – option)
• Resolution: 1psi
• Accuracy: 98%
• Interface: USB
• Software: GUI for Windows OS

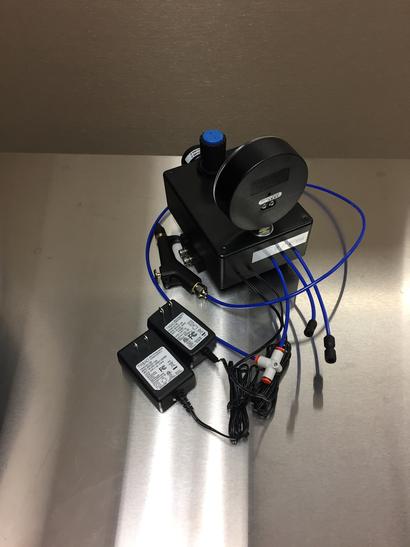

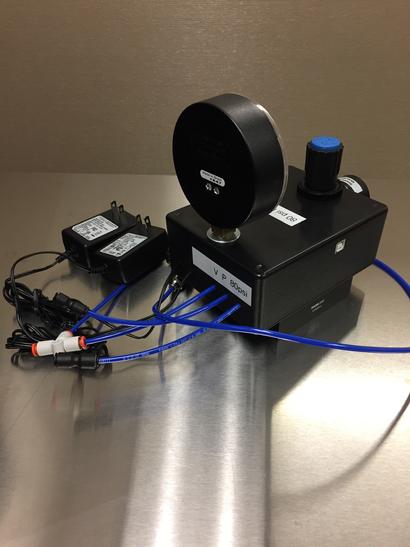

Pneumatic Controller for 4” Wafer Tester

Hardware FESTO pressure controller, FESTO pressure regulator, MEGA 2600, LINX firmware, USB interface

GUI includes the configuration fail path for coefficient of the digital to gage adjustment

Pneumatic Controller Features

• Bracket for Thorlabs structure
• Green LED indicator
• Pressure release hose
• Push-to-connect 4mm(5/32) and ¼ tube connectors
